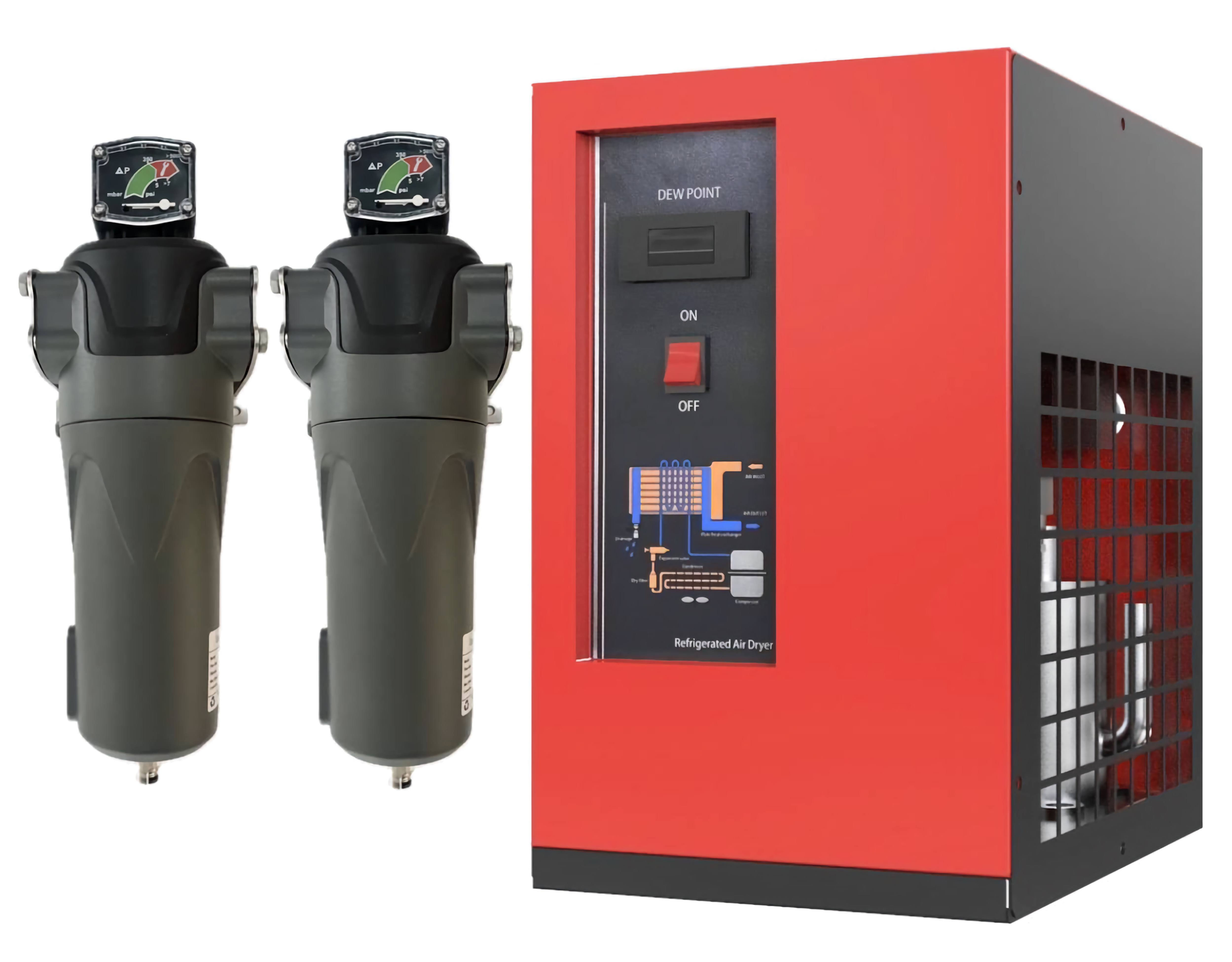

Air Wave Compressed Air Dryer 25-812CFM

Eco-Dry TR Series Refrigerated Compressed Air Dryers
The Eco-Dry TR Series delivers a simple, highly effective solution for removing naturally occurring moisture and oil from your compressed air system. While some manufacturers incorporate the dryer inside the hot compressor cabinet—essentially placing a freezer next to an oven—the Eco-Dry range features a standalone, floor-mounted design. This allows you to site the dryer anywhere you wish within your air network for optimal cooling efficiency and a reliable dew point.
Key Features Across the Range
Simple Plug and Play Design: Standalone floor-mounted configuration allows total flexibility on where you place your dryer within the air system.
The Brain (Dryer Control Board): The Airwave Eco-Dry digital controller lets the user easily monitor temperature parameters and view quick visual alarms.
The Heart and Body (Rugged & Tough): Encapsulated in an acoustic cabinet to reduce operating noise to the equivalent of a domestic fridge, with all panels easily removed for servicing.
High-Efficiency Cooling: Large capacity condenser and an electrically controlled fan rapidly reduce the compressor's outlet air temperature, even in the warmest climates.
Adjustable Timed Drain: Integrated moisture drainage that can be fully adjusted to your workshop’s specific preferences.
Enhancement (Oil & Water Contamination Removal): To combat moisture and micro amounts of compressor oil carryover, select models are available with pre- and oil-removal filtration as standard to deliver high-efficiency particle retention down to 0.01 micron.
Peace of Mind: Backed by a comprehensive 2-Year No-Quibble Guarantee.
Available Models & Options

Option 1: ECO-DRY TR-5
Max Pressure: 16 Bar
Output @ 8 Bar: 25 CFM
Floor Mounted Dryer Inc Pre-Oil Filtration: No
Dryer Dimensions: 363W x 413D x 557H mm
Outlet Size: 1/2" BSP Female Thread

Option 2: ECO-DRY TR-5 with FILTERS
Max Pressure: 16 Bar
Output @ 8 Bar: 25 CFM
Floor Mounted Dryer Inc Pre-Oil Filtration: Yes (0.01 micron)
Dryer Dimensions: 363W x 413D x 557H mm
Outlet Size: 1/2" BSP Female Thread

Option 3: ECO-DRY TR-10
Max Pressure: 16 Bar
Output @ 8 Bar: 40 CFM
Floor Mounted Dryer Inc Pre-Oil Filtration: No
Dryer Dimensions: 380W x 480D x 670H mm
Outlet Size: 3/4" BSP Female Thread

Option 4: ECO-DRY TR-10 with FILTERS
Max Pressure: 16 Bar
Output @ 8 Bar: 40 CFM
Floor Mounted Dryer Inc Pre-Oil Filtration: Yes (0.01 micron)
Dryer Dimensions: 380W x 480D x 670H mm
Outlet Size: 1/2" BSP Female Thread

Option 5: ECO-DRY TR-20
Max Pressure: 16 Bar
Output @ 8 Bar: 80 CFM
Floor Mounted Dryer Inc Pre-Oil Filtration: No
Dryer Dimensions: 410W x 520D x 725H mm
Outlet Size: 3/4" BSP Female Thread

Option 6: ECO-DRY TR-20 with FILTERS
Max Pressure: 16 Bar
Output @ 8 Bar: 80 CFM
Floor Mounted Dryer Inc Pre-Oil Filtration: Yes (0.01 micron)
Dryer Dimensions: 410W x 520D x 725H mm
Outlet Size: 3/4" BSP Female Thread

Option 7: ECO-DRY TR-30
Max Pressure: 16 Bar
Output @ 8 Bar: 120 CFM
Floor Mounted Dryer Inc Pre-Oil Filtration: No
Dryer Dimensions: 520W x 640D x 850H mm
Outlet Size: 1" BSP Female Thread

Option 8: ECO-DRY TR-30 with FILTERS
Max Pressure: 16 Bar
Output @ 8 Bar: 120 CFM
Floor Mounted Dryer Inc Pre-Oil Filtration: Yes (0.01 micron)
Dryer Dimensions: 520W x 640D x 850H mm
Outlet Size: 1" BSP Female Thread

Option 9: ECO-DRY TR-50
Max Pressure: 16 Bar
Output @ 8 Bar: 240 CFM
Floor Mounted Dryer Inc Pre-Oil Filtration: No
Dryer Dimensions: 540W x 700D x 950H mm
Outlet Size: 1-1/2" BSP Female Thread

Option 10: ECO-DRY TR-50 with FILTERS
Max Pressure: 16 Bar
Output @ 8 Bar: 240 CFM
Floor Mounted Dryer Inc Pre-Oil Filtration: Yes (0.01 micron)
Dryer Dimensions: 540W x 700D x 950H mm
Outlet Size: 1-1/2" BSP Female Thread

Option 11: ECO-DRY TR-60
Max Pressure: 16 Bar
Output @ 8 Bar: 300 CFM
Floor Mounted Dryer Inc Pre-Oil Filtration: No
Dryer Dimensions: 590W x 770D x 990H mm
Outlet Size: 2" BSP Female Thread

Option 12: ECO-DRY TR-60 with FILTERS
Max Pressure: 16 Bar
Output @ 8 Bar: 300 CFM
Floor Mounted Dryer Inc Pre-Oil Filtration: Yes (0.01 micron)
Dryer Dimensions: 590W x 770D x 990H mm
Outlet Size: 2" BSP Female Thread
