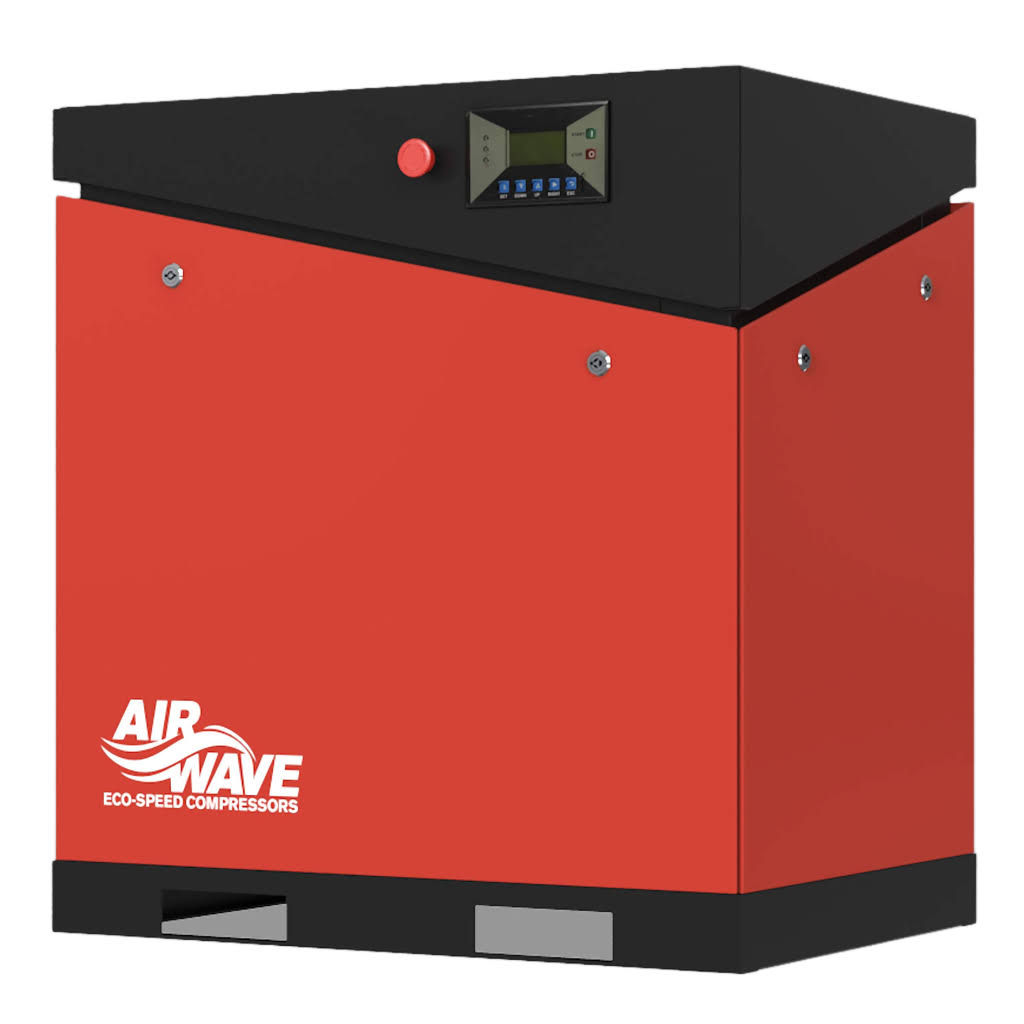

Air Wave Eco Speed 3Phase Floor Mounted Air Compressor 5.5-15KW

Air Wave Eco Speed 3Phase Floor Mounted Air Compressor 5.5-15KW

Airwave ECO-Speed Fixed Speed Compressor Range
The Airwave ECO-Speed series consists of heavy-duty, floor-mounted, direct-drive rotary screw air compressors engineered for continuous 100% duty cycles. Operating on a 400V, 3-phase supply with a Star-Delta starter, these oil-lubricated compressors feature a simple "plug and play" installation, robust seamless pipework, and an IP55 air-cooled motor. Each unit is equipped with an advanced monitoring system for maintenance warnings, an electric thermostatically controlled cooling system, and a 3/4" BSP female outlet. Air dryers and filters are available as optional add-ons, and the entire range comes backed by a 2-year warranty (T&Cs apply).

MODEL SPECIFICATIONS:

Airwave ECO-Speed 7.5hp (SKU: XLAM7.5A-10) • Motor Power: 7.5 hp / 5.5 kW (IP55 Air Cooled) • Voltage: 400V / 3 Phase / 50Hz (20 Amp Supply) • Free Air Delivery (FAD): 30 cfm @ 8 bar / 27.5 cfm @ 10 bar • Max Working Pressure: 10 Bar • Tank Size: n/a (Floor Mounted) • Noise Level: 64 dB(A) • Connection & Options: 3/4" BSP Female Thread / Optional Dryer & Filters

Airwave ECO-Speed 10hp (SKU: XLAM10A-10) • Motor Power: 10 hp / 7.5 kW (IP55 Air Cooled) • Voltage: 400V / 3 Phase / 50Hz (20 Amp Supply) • Free Air Delivery (FAD): 40 cfm @ 8 bar / 37 cfm @ 10 bar • Max Working Pressure: 10 Bar • Tank Size: n/a (Floor Mounted) • Noise Level: 64 dB(A) • Connection & Options: 3/4" BSP Female Thread / Optional Dryer & Filters

Airwave ECO-Speed 15hp (SKU: XLAM15A-10) • Motor Power: 15 hp / 11 kW (IP55 Air Cooled) • Voltage: 400V / 3 Phase / 50Hz (32 Amp Supply) • Free Air Delivery (FAD): 60 cfm @ 8 bar / 57 cfm @ 10 bar • Max Working Pressure: 10 Bar • Tank Size: n/a (Floor Mounted) • Noise Level: 65 dB(A) • Connection & Options: 3/4" BSP Female Thread / Optional Dryer & Filters

Airwave ECO-Speed 20hp (SKU: XLAM20A-10) • Motor Power: 20 hp / 15 kW (IP55 Air Cooled) • Voltage: 400V / 3 Phase / 50Hz (40 Amp Supply) • Free Air Delivery (FAD): 83 cfm @ 8 bar / 75.5 cfm @ 10 bar • Max Working Pressure: 10 Bar • Tank Size: n/a (Floor Mounted) • Noise Level: 65 dB(A) • Connection & Options: 3/4" BSP Female Thread / Optional Dryer & Filters
