Air Wave Micro Speed Variable Speed Air Compressor 200L Tank Mounted

Air Wave Micro Speed Variable Speed Air Compressor 200L Tank Mounted

4-5.5KW Options
4KW Single phase
5.5KW Single phase
4KW 3 Phase
5.5KW 3Phase
Air Wave Micro Speed Variable Speed Air Compressor 200L Tank Mounted

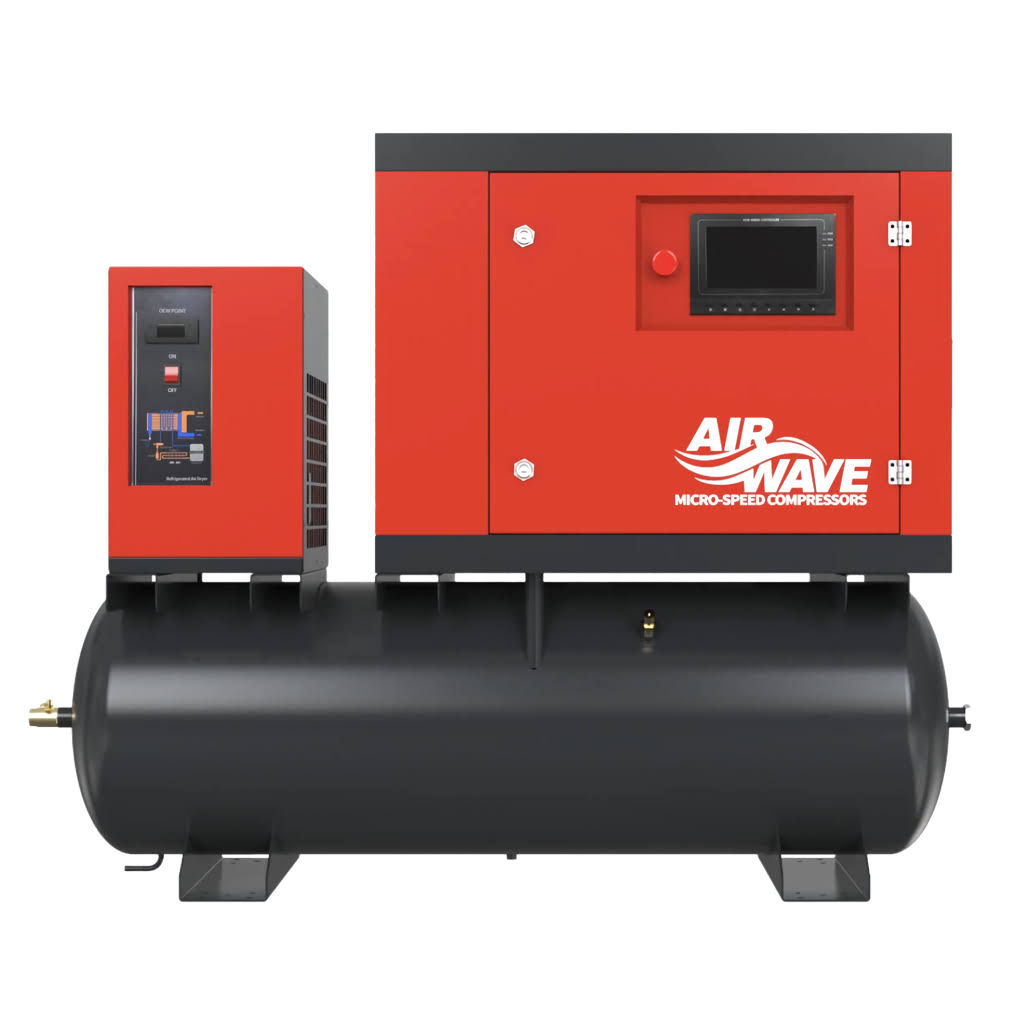

Airwave Micro-Speed Tank-Mounted Compressor Range with Integrated Dryer
The Airwave Micro-Speed Tank-Mounted + Dryer series offers the ultimate all-in-one compressed air solution. Featuring state-of-the-art Direct Drive Variable Speed Technology and an oil-lubricated rotary screw pump, this premium range comes fully integrated with a 200L receiver and a tank-mounted refrigeration dryer for clean, dry air straight out of the box.
Key Features Across the Range
  • All-In-One Dry Air System: Includes an integrated, tank-mounted refrigeration dryer to remove moisture and protect your downstream tools.
  • Large Capacity Storage: Mounted on a high-volume 200L air receiver designed with a compact footprint to save workshop floor space.
  • Flexible Mobility: Wheel-mounted for convenient positioning, with optional floor pads available.
  • 100% Duty Factor: Engineered for continuous, non-stop industrial operation.
  • Advanced Smart Controls: Touchscreen monitoring with maintenance warnings, Wi-Fi connectivity, and a 7-day programmable start/stop function.
  • Premium Engineering: IP65 oil-cooled permanent magnet motor, soft-start technology (low startup amps), and seamless solid pipework.
  • Quiet & Efficient: Low noise operation with an electric, thermostatically controlled cooling system.
  • Configurable Setup: Standard 1/2" BSP female outlet. High-efficiency 0.01 oil removal filters are available as an option.
  • Warranty: Backed by a 2-Year Warranty (T&Cs apply).

Available Models & Options

Option 1: Airwave Micro-Speed 5.5hp / 200L + Dryer (Single Phase)
  • SKU: XLPM5.5ATD-10-200-230V
  • Motor Power: 5.5 hp / 4 kW
  • Electrical Supply: 230V (1 Phase) / 32-amp
  • Air Output (FAD): 10 – 16.59 CFM @ 9.5 bar
  • Tank Size: 200L
  • Integrated Dryer: Yes
  • Max Pressure: 10 Bar
  • Noise Level: 60 dB(A)

Option 2: Airwave Micro-Speed 5.5hp / 200L + Dryer (Three Phase)
  • SKU: XLPM5.5ATD-10-200-400V
  • Motor Power: 5.5 hp / 4 kW
  • Electrical Supply: 400V (3 Phase) / 16-amp
  • Air Output (FAD): 10 – 16.59 CFM @ 9.5 bar
  • Tank Size: 200L
  • Integrated Dryer: Yes
  • Max Pressure: 10 Bar
  • Noise Level: 60 dB(A)

Option 3: Airwave Micro-Speed 7.5hp / 200L + Dryer (Single Phase)
  • SKU: XLPM7.5ATD-10-200-230V
  • Motor Power: 7.5 hp / 5.5 kW
  • Electrical Supply: 230V (1 Phase) / 40-amp
  • Air Output (FAD): 12 – 20.83 CFM @ 9.5 bar
  • Tank Size: 200L
  • Integrated Dryer: Yes
  • Max Pressure: 10 Bar
  • Noise Level: 62 dB(A)

Option 4: Airwave Micro-Speed 7.5hp / 200L + Dryer (Three Phase)
  • SKU: XLPM7.5ATD-10-200-400V
  • Motor Power: 7.5 hp / 5.5 kW
  • Electrical Supply: 400V (3 Phase) / 20-amp
  • Air Output (FAD): 12 – 20.83 CFM @ 9.5 bar
  • Tank Size: 200L
  • Integrated Dryer: Yes
  • Max Pressure: 10 Bar
  • Noise Level: 62 dB(A)
