Air Wave Micro Speed Variable Speed Air Compressor 4-5.5 KW 160L Tank Mounted

Air Wave Micro Speed Variable Speed Air Compressor 4-5.5 KW 160L Tank Mounted

4-5.5KW Options
4KW Single phase
5.5KW Single phase
4KW 3 Phase
5.5KW 3Phase
4KW single phase + Dryer
5.5KW single phase + Dryer
4KW 3 Phase + Dryer
5.5KW 3 Phase + Dryer

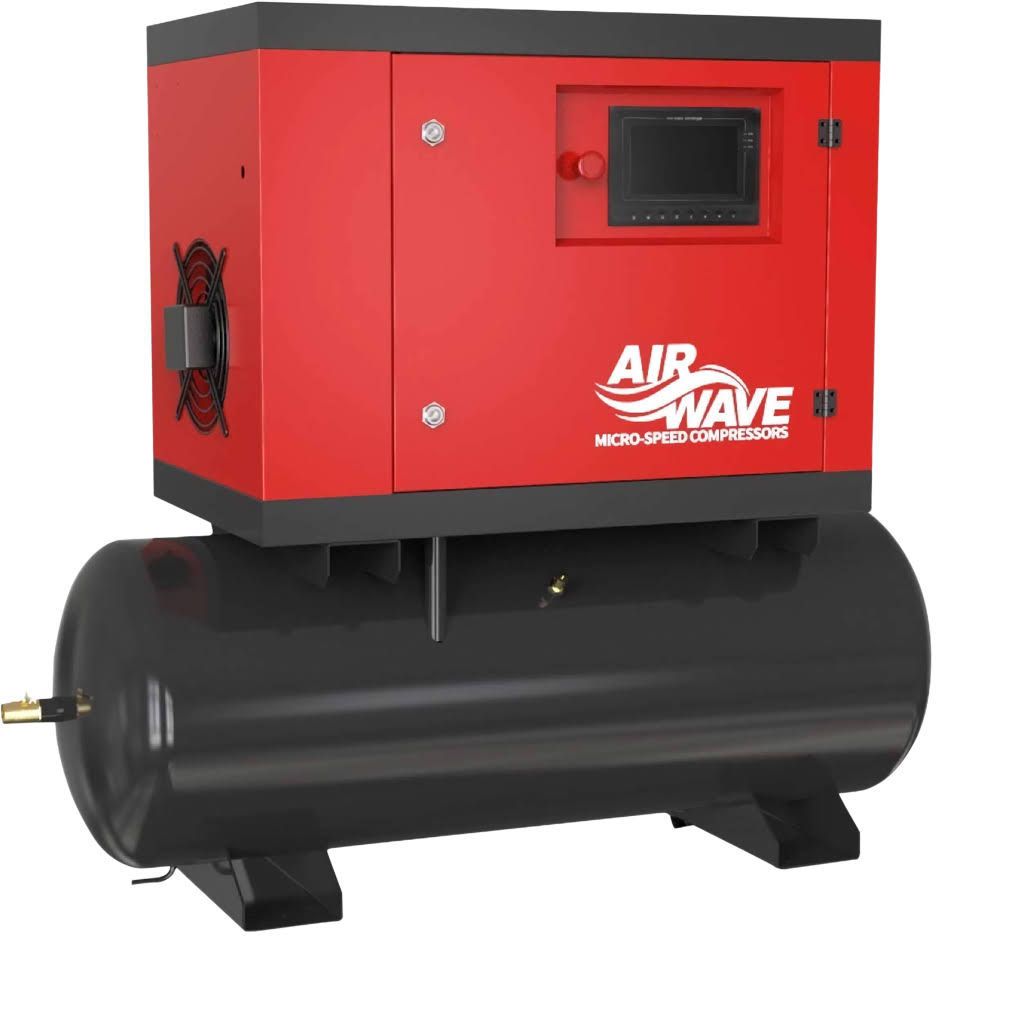

Air Wave Micro Speed Variable Speed Air Compressor 4-5.5 KW 160L Tank Mounted

Airwave Micro-Speed Tank-Mounted Compressor Range
The Airwave Micro-Speed Tank-Mounted series features state-of-the-art Direct Drive Variable Speed Technology with oil-lubricated rotary screw pumps, conveniently mounted on a space-saving receiver. Designed for maximum efficiency and mobility, these compressors offer industrial-grade performance with simple plug-and-play installation.
Key Features Across the Range
  • Built-in Storage: Mounted on a 160L air receiver designed with a compact footprint.
  • Flexible Mobility: Wheel-mounted for easy positioning, with optional floor pads available.
  • 100% Duty Factor: Built for continuous, non-stop operation.
  • Advanced Smart Controls: Touchscreen monitoring with maintenance warnings, Wi-Fi connectivity, and a 7-day programmable start/stop function.
  • Premium Engineering: IP65 oil-cooled permanent magnet motor, soft-start technology (low startup amps), and seamless solid pipework.
  • Quiet & Efficient: Low noise operation with an electric, thermostatically controlled cooling system.
  • Configurable Setup: Standard 3/4" BSP female outlet. Optional dryers and air filters are available upon request.
  • Warranty: Backed by a 2-Year Warranty (T&Cs apply).
Available Models & Options


Option 1: Airwave Micro-Speed 5.5hp / 160L (Single Phase)
  • SKU: XLPM5.5AT-10-160-230V
  • Motor Power: 5.5 hp / 4 kW
  • Electrical Supply: 230V (1 Phase) / 32-amp
  • Air Output (FAD): 10 – 16.59 CFM @ 9.5 bar
  • Tank Size: 160L
  • Max Pressure: 10 Bar
  • Noise Level: 60 dB(A)

Option 2: Airwave Micro-Speed 5.5hp / 160L (Three Phase)
  • SKU: XLPM5.5AT-10-160-400V
  • Motor Power: 5.5 hp / 4 kW
  • Electrical Supply: 400V (3 Phase) / 16-amp
  • Air Output (FAD): 10 – 16.59 CFM @ 9.5 bar
  • Tank Size: 160L
  • Max Pressure: 10 Bar
  • Noise Level: 60 dB(A)

Option 3: Airwave Micro-Speed 7.5hp / 160L (Single Phase)
  • SKU: XLPM7.5AT-10-160-230V
  • Motor Power: 7.5 hp / 5.5 kW
  • Electrical Supply: 230V (1 Phase) / 40-amp
  • Air Output (FAD): 12 – 20.83 CFM @ 9.5 bar
  • Tank Size: 160L
  • Max Pressure: 10 Bar
  • Noise Level: 62 dB(A)

Option 4: Airwave Micro-Speed 7.5hp / 160L (Three Phase)
  • SKU: XLPM7.5AT-10-160-400V
  • Motor Power: 7.5 hp / 5.5 kW
  • Electrical Supply: 400V (3 Phase) / 20-amp
  • Air Output (FAD): 12 – 20.83 CFM @ 9.5 bar
  • Tank Size: 160L
  • Max Pressure: 10 Bar
  • Noise Level: 62 dB(A)
