Air Wave Variable Speed Air Compressor 7.5-45KW +Dryer

Air Wave Variable Speed Air Compressor 7.5-45KW +Dryer

7.5-45 KW Options
7.5 KW
11KW
15KW
22KW
30KW
37KW
45KW
Air Wave Variable Speed Air Compressor  7.5-45KW +Dryer

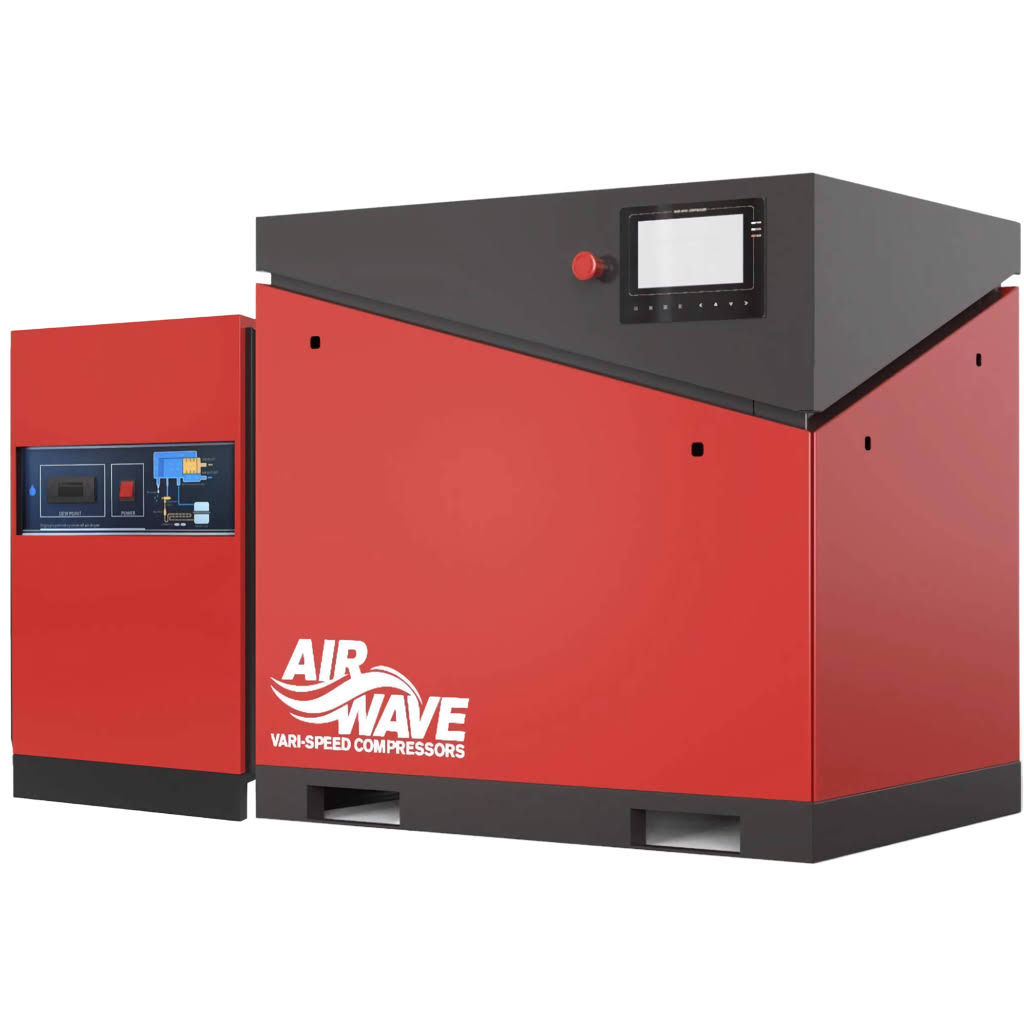

Airwave VARI-Speed Floor-Mounted Compressor & Dryer Range
The Airwave VARI-Speed series delivers high-capacity industrial performance utilizing advanced Direct Drive Variable Speed Technology and oil-lubricated rotary screw pumps. Designed for heavy-duty commercial applications, this 3-phase floor-mounted range comes complete with a dedicated floor-mounted dryer package. By removing integrated tank storage, this series provides massive, clean, moisture-free volume output within an ultra-flexible footprint—ideal for installations with existing receivers or restricted ceiling heights.
Key Features Across the Range
  • Floor-Mounted Dryer Included: Every package features a dedicated floor-mounted dryer alongside a complete compressor-to-dryer connection kit for high-efficiency moisture removal.
  • Space-Saving Floor Mount: Zero integrated tank storage allows for a compact, modular layout built to pipe directly into your existing air receiver infrastructure.
  • Simple Installation: Engineered for a straightforward, hassle-free "Plug and Play" setup to keep your production moving.
  • Dual-Pressure Performance: Optimized to deliver variable, high-volume free air delivery (FAD) across a flexible 6–10 bar working pressure range.
  • 100% Duty Factor: Heavy-duty architecture engineered for continuous, non-stop 3-phase industrial workloads.
  • Advanced Smart Controls: Touchscreen monitoring panel complete with maintenance warnings, Wi-Fi connectivity, and a 7-day programmable start/stop function.
  • Premium Engineering: Oil-cooled permanent magnet motor, soft-start technology (low startup amps), and low component count solid seamless pipework.
  • Quiet & Efficient: Operating quietly relative to its massive power class, managed by an electric, thermostatically controlled cooling system.
  • Configurable Setup: High-efficiency 0.01 oil removal filters are available as an option.
  • Warranty: Backed by a 2-Year Warranty (T&Cs apply).
Available Models & Options

Option 1: Airwave VARI-Speed 10hp Floor Mounted + Dryer [MK2] (Three Phase)
  • SKU: XL-10-EPMD-EMC-10
  • Motor Power: 10 hp / 7.5 kW
  • Electrical Supply: 400V / 3 Phase / 50Hz (30-amp)
  • Air Output (FAD) @ 8 Bar: 22 – 40 CFM
  • Air Output (FAD) @ 10 Bar: 22 – 37 CFM
  • Tank Size: None (Floor Mounted)
  • Max Pressure: 10 Bar
  • Dryer Setup: Floor Mounted (Connection Kit Included)
  • Filters: Optional 0.01 Oil Removal
  • Outlet Size: 3/4" BSP Female Thread
  • Noise Level: 64 dB(A)

Option 2: Airwave VARI-Speed 15hp Floor Mounted + Dryer [MK2] (Three Phase)
  • SKU: XL-15-EPMD-EMC-10
  • Motor Power: 15 hp / 11 kW
  • Electrical Supply: 400V / 3 Phase / 50Hz (32-amp)
  • Air Output (FAD) @ 8 Bar: 34 – 60 CFM
  • Air Output (FAD) @ 10 Bar: 34 – 57 CFM
  • Tank Size: None (Floor Mounted)
  • Max Pressure: 10 Bar
  • Dryer Setup: Floor Mounted (Connection Kit Included)
  • Filters: Optional 0.01 Oil Removal
  • Outlet Size: 3/4" BSP Female Thread
  • Noise Level: 65 dB(A)

Option 3: Airwave VARI-Speed 20hp Floor Mounted + Dryer [MK2] (Three Phase)
  • SKU: XL-20-EPMD-EMC-10
  • Motor Power: 20 hp / 15 kW
  • Electrical Supply: 400V / 3 Phase / 50Hz (40-amp)
  • Air Output (FAD) @ 8 Bar: 45 – 83 CFM
  • Air Output (FAD) @ 10 Bar: 45 – 75 CFM
  • Tank Size: None (Floor Mounted)
  • Max Pressure: 10 Bar
  • Dryer Setup: Floor Mounted (Connection Kit Included)
  • Filters: Optional 0.01 Oil Removal
  • Outlet Size: 3/4" BSP Female Thread
  • Noise Level: 65 dB(A)

Option 4: Airwave VARI-Speed 30hp Floor Mounted + Dryer [MK2] (Three Phase)
  • SKU: XL-30-EPMD-EMC-10
  • Motor Power: 30 hp / 22 kW
  • Electrical Supply: 400V / 3 Phase / 50Hz (63-amp)
  • Air Output (FAD) @ 8 Bar: 56 – 123 CFM
  • Air Output (FAD) @ 10 Bar: 56 – 112 CFM
  • Tank Size: None (Floor Mounted)
  • Max Pressure: 10 Bar
  • Dryer Setup: Floor Mounted (Connection Kit Included)
  • Filters: Optional 0.01 Oil Removal
  • Outlet Size: 1" BSP Female Thread
  • Noise Level: 75 dB(A)

Option 5: Airwave VARI-Speed 40hp Floor Mounted + Dryer [MK2] (Three Phase)
  • SKU: XL-40-EPMD-EMC-10
  • Motor Power: 40 hp / 30 kW
  • Electrical Supply: 400V / 3 Phase / 50Hz (80-amp)
  • Air Output (FAD) @ 8 Bar: 83 – 183 CFM
  • Air Output (FAD) @ 10 Bar: 83 – 167 CFM
  • Tank Size: None (Floor Mounted)
  • Max Pressure: 10 Bar
  • Dryer Setup: Floor Mounted (Connection Kit Included)
  • Filters: Optional 0.01 Oil Removal
  • Outlet Size: 1-1/2" BSP Female Thread
  • Noise Level: 75 dB(A)

Option 6: Airwave VARI-Speed 50hp Floor Mounted + Dryer [MK2] (Three Phase)
  • SKU: XL-50-EPMD-EMC-10
  • Motor Power: 50 hp / 37 kW
  • Electrical Supply: 400V / 3 Phase / 50Hz (90-amp)
  • Air Output (FAD) @ 8 Bar: 99 – 218 CFM
  • Air Output (FAD) @ 10 Bar: 99 – 198 CFM
  • Tank Size: None (Floor Mounted)
  • Max Pressure: 10 Bar
  • Dryer Setup: Floor Mounted (Connection Kit Included)
  • Filters: Optional 0.01 Oil Removal
  • Outlet Size: 1-1/2" BSP Female Thread
  • Noise Level: 80 dB(A)

Option 7: Airwave VARI-Speed 60hp Floor Mounted + Dryer [MK2] (Three Phase)
  • SKU: XL-60-EPMD-EMC-10
  • Motor Power: 60 hp / 45 kW
  • Electrical Supply: 400V / 3 Phase / 50Hz (100-amp)
  • Air Output (FAD) @ 8 Bar: 118 – 261 CFM
  • Air Output (FAD) @ 10 Bar: 118 – 236 CFM
  • Tank Size: None (Floor Mounted)
  • Max Pressure: 10 Bar
  • Dryer Setup: Floor Mounted (Connection Kit Included)
  • Filters: Optional 0.01 Oil Removal
  • Outlet Size: 2" BSP Female Thread
  • Noise Level: 80 dB(A)
